| Place of Origin: | Guangdong, China, Guangdong, China |
| Brand Name: | Richmor, OEM |
| Certification: | CE/FCC/ROHS |
| Model Number: | BK6MZ |
Product Profile

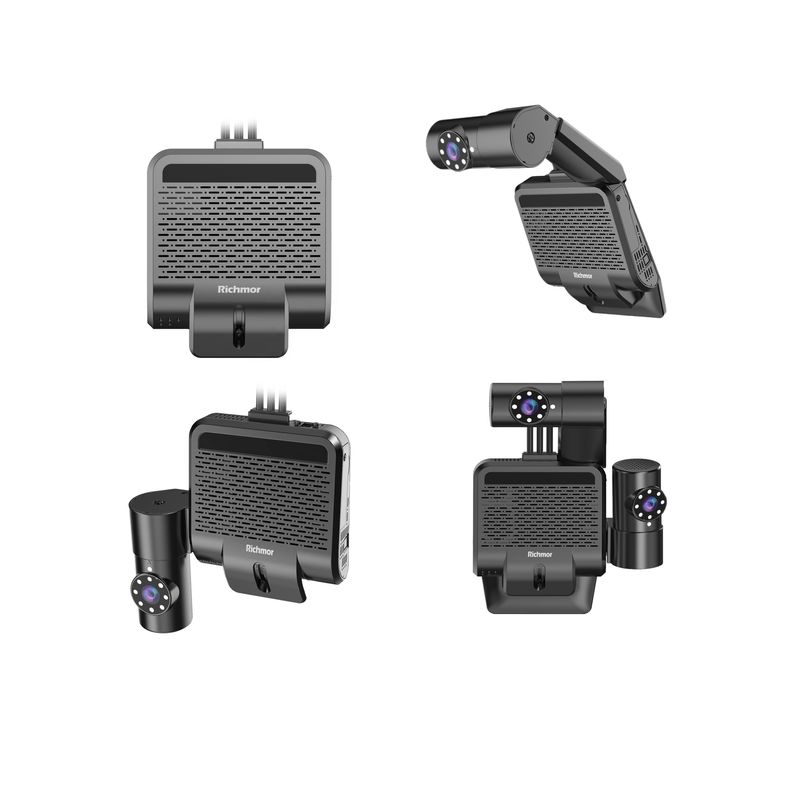

RCM-BK6MH is Richmor 6th generation professional AI -powered Mulit-Channel MDVR designed dashcam .
This camera design is much better fitted (100%)front windscreen installation without reflection than the traditional 2/3 fitted design.
Advanced Features:
H.265/H.264 hardware compression, powerful AI processor (NPU1.0T for each AI alarm),
with neuronal logic reasoning engine, support for deep learning algorithms.
Integrated DMS camera, can expand 1 AI camera input. Support improved DSM and ADAS, BSD optional.
Improved DMS ——It can connect the DMS camera to give alarm warning and upload video/scraps to the monitoring center,
including: fatigue (closing eyes, yawning), distraction, smoking, call on phone, Safety belts, Driver Face ID(Live) etc
Improved ADAS——Build in front facing camera as ADAS to give alarm warning
and upload video/scraps to the monitoring center, including: Land departure, front collision, car too close, pedestrian detection etc
Beidou /GPS positioning, support the ministry of JT/T808, JT/T1076, JT/T905, Geely, Su Biao and other platforms to report transmission.
Specifications
1.ABS material, compact size, can be directly attached to the front windshield by 3M glue.
2.The connection is simple and convenient, and the installation can be completed only in 1/20 of the installation time of the traditional terminal.
3.The machine has a high reliability design, can achieve continuous monitoring in -30℃~70° environment.
4.Industrial grade scheme and system design of the whole machine and reliable electromagnetic compatibility design,
to ensure the stable work of its own and peripheral electronic equipment.
5.The whole structure has good disassembly and dust proof design, to ensure that TF card, SIM card, antenna and connection port are not damaged.
6.The host can integrate a variety of video algorithms and the front camera to realize ADAS early warning.
7.Optional driving behavior analysis camera implements driving behavior analysis.
8.1 channel audio input. Integrated high sensitivity MIC, can record in-car audio, and support voice intercom. Host integrated speaker, audio broadcast and warning.
9.The host integrates five status indicators to observe the operating status of the device in real time.
10.External 1 alarm button (SOS).
11.Support GPS/BD positioning module to achieve speed, position, time and route management. Supports alarm of module anomaly and antenna anomaly.
12.Support navigation line departure and area entry and exit alarm, the device can save a maximum of 16 lines and areas.
13.Integrated 4G full network communication module, can realize remote monitoring and management.
|
Basic parameter |
Operating system | Linux |
| Network type | 4G TDD-LTE, FDD-LTE/Note | |
| Memory capacity | 2GB | |
|
Integrated camera |
HD 1080P camera (ADAS Front facing) |
|
|
Other cameras (external optional) |
HD 1080P camera (DSM optional) | |
|
Hardware function
|
GPS |
Dual-mode positioning, support GPS+ Beidou, Positioning accuracy ≤10m(95% probability) |
|
Positioning time: hot starting ≤5s, cold starting ≤45s |
||
| WiFi(optional) | 2.4G；IEEE 802.11b/g/n | |
| speakers | 8 euro 1W, voice cavity | |
| MIC | Single wheat supports echo and noise cancellation | |
| G-sensor | 3 axle Gravity acceleration sensor | |
|
Loop noise cancellation |
Compatible with hardware loop noise elimination | |
| 3G/4G |
Module band
|
UMTS:850/900/1900/2100MHz HSUPA/HSDPA:850/1900/2100MHz GSM/GPRS/EDGE:850/900/1800/1900MHz |
| Module type |
Support built-in 3G/4G wireless transmission function , TDD-LTE, FDD-LTE |
|
| support agreement |
Support UDP,TCP/IP protocol |
|
| Voice server | HR/FR/EFR and AMR | |
| Message Service | SMS | |
| transmitted power | EGSM850/900 2W,GSM1800/1900 1W,WCDMA 0.25W | |
| Port | aviation plug | Extension harness supports aviation plug extension 3 channel video |
| SIM card holder | SIM Card Holder *1 (large card) | |
| TF Card | TF Holder *1 (for recording video) | |
| communication interface | 1CH RS232 serial port is integrated | |
| Can(optional) | Can Scalability | |
| Network interface | Network Scalability | |
| Alarm input | 4CH IO alarm input | |
|
Alarm output (optional) |
1CH switching output, linkage sound and light alarm, oil off power, etc | |
| Indicator light | 5 status indicators | |
| Button/ LED | Warning function | SOS alarm, support external emergency alarm button implementation |
| BD/GPS antenna | External antenna | |
| Antenna | 4G antenna | Built in Antenna |
| WIFI antenna | Built-in antenna | |
|
Flame out shutdown |
Turn off the machine | |
| Shutdown |
Delayed shutdown
|
After extinguishing, delay to set time. Shut down equipment |
| nodes sleep mode | In low-power sleep mode, position information is periodically transmitted. | |
| Power input |
8-36V wide voltage input
|
|
| Power supply | power input |
8-36V wide voltage input
|
| working current | 12V 0.6A | |
| Low power mode | 12V 0.08A (flameout to report location data) | |
| Other | Working temperature | -30℃-70℃ |
| Storage Temperature) | -40℃-85℃ | |
| Size | 73*78*100mm |
